NZCH Ursa Broadcast

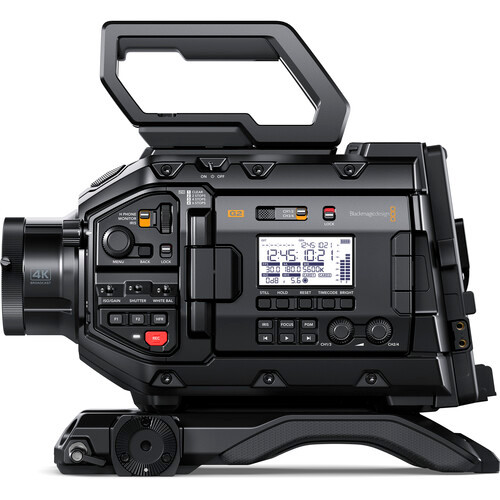

Blackmagic Design Ursa 4K broadcast camera with or without 22x zoom lens

$250.00 – $525.00

+ GST per business day

4K CMOS production / studio / film cameras recording to CFast or SDXC cards in H.265, ProRes or Blackmagic RAW

2x BMD Ursa Broadcast cameras available

KIT INCLUDES:    for additional lenses look here

  • either a Fujinon 23x or Canon 22x HD zoom lens with doubler or a Canon wide angle lens
  • Sachtler Fluid head Video 18 or 20 tripod legs & spreader
  • 2x 256GB CFast cards or 4x 128GB SDXC cards
  • 3x 190/160Whr V-lock Lithium-ion batteries and charger
  • Short stereo shot gun mic
  • AC-DC 12 volt Power Supply
  • Wet Weather Cover if required
  • USB Memory Card Reader / Writer
SKU: CA02-7-1 Categories: , Tags: , ,

RECORDING FORMAT

  • Multiple frame rates: 60i, 50i, 60p, 50p, 30p, 25p, 24p
  • Blackmagic RAW 10-Bit:
    6144 x 3456 at 50 fps (65 to 483 MB/s)
    6144 x 2560 at 60 fps (49 to 359 MB/s)
    5376 x 3024 at 60 fps (51 to 371 MB/s)
    3728 x 3104 at 60 fps (36 to 265 MB/s)
    3840 x 2160 at 60 fps (32 to 190 MB/s)
    1920 x 1080 at 150 fps (5.2 to 47 MB/s)
  • ProRes 422/ProRes 422HQ:
    3840 x 2160p up to 60 fps (73.6 to 110 MB/s)
    1920 x 1080p up to 60 fps (18.4 to 27.5 MB/s)
    1920 x 1080p at 120 fps (18.4 to 27.5 MB/s)
    H.265:
    3840 x 2160p up to 60 fps (3.2 to 7.8 MB/s)
    H.264:
    1920 x 1080p up to 60 fps (1.8 to 7 MB/s)

Blackmagic Design product page

https://www.blackmagicdesign.com/nz/products/blackmagicursabroadcast

CAMERA SPECIFICATIONS

  • Sensor: 2/3″-Type Sensor size when using B4 mount. When using EF mount, Sensor size is Super 35mm
  • interchangeable B4, PL, F or EF lens mount
  • Recording Media: SDXC or CFexpress memory cards
  • Resolution: 1,000 TV lines or more 1920 (horizontal) x 1080 (vertical)
  • ISO Sensitivity: 400 to 3200 (Native), 100 to 25,600 (Expanded)
  • Shutter Speed: Off, 1/33, 1/50, 1,60, 1/100, 1/125, 1/250, 1/500,   1/1000, 1/2000 (s)
  • Clear scan: 25 to 4700 Hz
  • Slow Shutter: (down to 2-, 3-, 4-, 5-, 6-, 7-, 8-, 16-frame periods)
  • Interval recording
  • 4-inch type colour LCD display<
  • Pre- Recording (Cache) up to 10 minutes
  • Proxy Data recording, Metadata
  • Freeze Mix function
  • 12G- SDI

SIGNAL INPUTS / OUTPUTS

  • OUT: 2x SDI (HD/SD switchable) – BNC, USB-C, Earphone – Mini-jack, 2.5mm LANC
  • IN: SDI (HD/SD switchable) – BNC, Audio – XLR 3-pin x2, Timecode – BNC, USB-C, DC
