- Resolution 1920 x 1080 pixels
- 400 nits
- runs on Canon style LP-E6 batteries
- Colour Depth: 8-bit processing
- Contrast: 1500:1

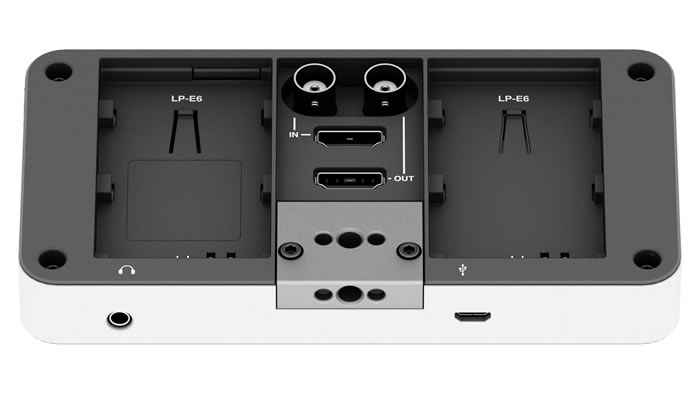

- Inputs: SDI and HDMI, USB
- Outputs: SDI and HDMI
- Gamut: able to reproduce 100% Rec 709 color
- 8.4 x 13.35 x 1.9 cm
Software
Pixel Zoom – 2x & 4x with smooth pan via joystick
Frame Guides – Yes
DSLR Scale – Canon & Nikon
Custom Scale – Yes
Anamorphic De-Squeeze – Yes
Image Rotate – Yes
Image Flip – Automatic or Manual Control
Focus Assist – User Adjustable Color Style and Intensity
Peaking – User Adjustable Intensity
False Color – Spectrum, Arri Style and Fully User Customizable
Zebra – Dual – User Configurable
Waveform – Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope – Yes
PIP – No
RGB Parade – Fully User Customizable
Histogram – Luma & RGB Style
Horizon Indicator – No
Image Capture – With Dedicated Button and Image Gallery
Custom LUTS – Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Creation – No
LUT Downstream – Applied on Output Preview Page
LUT Import – Via SD Card or USB Storage Device
Overlay – Opacity Slider and Blink Setting
Blue Only – No
Audio Meters – Up to 8 channel
